Use Pester to Test Azure Resource Manager Templates for Best Practices

October 13, 2018 azure powershell azsk pester

Recently I came across the amazing Secure DevOps Kit for Azure (AzSK). This contains a really useful AzSK PowerShell Module that contains cmdlets for performing different types of security scanning on Azure Resources, Subscriptions, and Resource Manager Templates.

The feature of this module that I was most interested in for my current project was being able to scan ARM templates for best practice violations.

To install the module, open a PowerShell Window and run:

# filepath: d:\source\GitHub\PlagueHO\plagueho.github.io\src\posts\2018\10\2018-10-13-use-pester-to-test-azure-resource-manager-templates-for-best-practices.md
Install-Module -Name AzSK

Important: At the time of writing this post, the AzSK module has dependencies on the AzureRM.Profile and other AzureRM.* PowerShell modules. As of December 2018, the AzureRM.* PowerShell Modules are going to be renamed to Az.* (see this post). The AzureRM and Az modules cannot be installed side-by-side, so if you’ve installed the Az PowerShell modules on your system, then the installation of AzSK will fail because the AzureRM modules will also be installed and a conflict will occur.

The cmdlet we’re most interested in is the Get-AzSKARMTemplateSecurityStatus. It can be used to scan one or more ARM templates or entire folders of ARM templates for best practice violations:

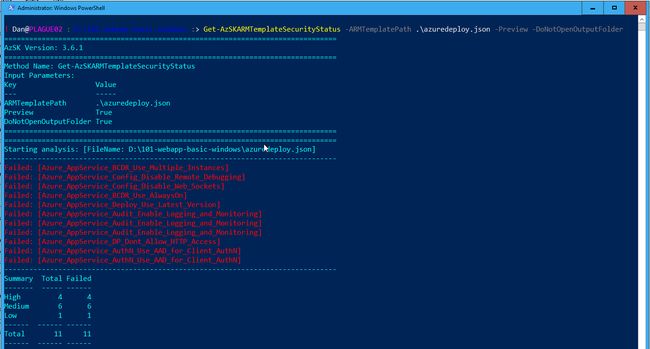

ss_azsk_scanning

This will scan the ARM templates and produce a CSV report in a folder Microsoft\AzSKLogs\ARMChecker within your $ENV:LOCALAPPDATA folder and open the folder in Explorer. This isn’t ideal for automation scenarios or using during Continuous Integration or Continuous Delivery pipelines. I’ve raised an issue with the AzSK team on GitHub to see if this can be improved.

In my case, I wanted to be able to use the PowerShell Pester Module, a PowerShell testing framework, to execute tests on the output and then use the NUnit output Pester generates to publish into a Continuous Integration pipeline. To do that, I needed to create a custom test script that would take the CSV report, count the failures of each level (High, Medium, or Low), and fail if any are counted in the specific level.

This is what the script looks like:

# filepath: d:\source\GitHub\PlagueHO\plagueho.github.io\src\posts\2018\10\2018-10-13-use-pester-to-test-azure-resource-manager-templates-for-best-practices.md
<#PSScriptInfo
.VERSION 1.0.0
.GUID bf41177f-4d1e-481a-a126-5f0c07dd9aae
.AUTHOR Daniel Scott-Raynsford
.COMPANYNAME
.COPYRIGHT (c) 2018 Daniel Scott-Raynsford. All rights reserved.
.TAGS AzSK, Pester, Test
.LICENSEURI https://gist.github.com/PlagueHO/1af35ee65a2276ca90b3a8a5b224a5d4
.PROJECTURI https://gist.github.com/PlagueHO/1af35ee65a2276ca90b3a8a5b224a5d4
.ICONURI
.EXTERNALMODULEDEPENDENCIES
.REQUIREDSCRIPTS
.EXTERNALSCRIPTDEPENDENCIES
.RELEASENOTES First version.
.PRIVATEDATA 2016-Datacenter,2016-Datacenter-Server-Core
#>

#requires -Modules @{ ModuleName="AzSK"; ModuleVersion="3.6.1" }
#requires -Modules @{ ModuleName="Pester"; ModuleVersion="4.3.0" }
<#
    .SYNOPSIS
    Pester test for validating ARM template meets best-practices

    .DESCRIPTION
    This Pester test will validate one or more ARM templates in the specified
    file path to validate that they meet the best practices.

    .PARAMETER TemplatePath
    The full path to the ARM template to check. This may be a path with
    wild cards to check multiple files.

    .PARAMETER Severity
    An array of severity values that will count as failed tests. Any violation
    found in the ARM template that matches a severity in this list will cause
    the Pester test to count as failed. Defaults to 'High' and 'Medium'.

    .PARAMETER SkipControlsFromFile
    The path to a controls file that can be used to suppress rules.
#>
[CmdletBinding()]
param (
    [Parameter(Mandatory = $true)]
    [System.String]
    $TemplatePath,

    [Parameter()]
    [System.String[]]
    $Severity = @('High', 'Medium'),

    [Parameter()]
    [System.String]
    $SkipControlsFromFile
)

Describe 'ARM template best practices' -Tag 'AzSK' {
    Context 'When AzSK module is installed and run on all files in the Templates folder' {
        $resultPath = Get-AzSKARMTemplateSecurityStatus `
            -ARMTemplatePath $TemplatePath `
            -Preview:$true `
            -DoNotOpenOutputFolder `
            -SkipControlsFromFile $SkipControlsFromFile `
            -Recurse
        $resultFile = (Get-ChildItem -Path $resultPath -Filter 'ARMCheckerResults_*.csv')[0].FullName

        It 'Should produce a valid CSV results file ' {
            $resultFile | Should -Not -BeNullOrEmpty
            Test-Path -Path $resultFile | Should -Be $true
            $script:resultsContent = Get-Content -Path $resultFile | ConvertFrom-Csv
        }

        $groupedResults = $script:resultsContent | Where-Object -Property Status -EQ 'Failed' | Group-Object -Property Severity

        $testCases = $Severity.Foreach({ @{ Severity = $_ } })

        It 'Should have 0 failed Severity:<Severity> results' -TestCases $testCases {
            param ([System.String] $Severity)
            $failedCount = $groupedResults.Where({ $_.Name -eq $Severity })[0].Count
            $failedCount | Should -Be 0
        }
    }
}

You can download the script from GitHub Gist directly or get it from the PowerShell Gallery by running:

Install-Script -Name AzSKARMTemplateSecurityStatus.Test

To use it, you will need to install Pester 4.3.0 and AzSK 3.6.1 modules:

Install-Module -Name Pester -MinimumVersion 4.3.0
Install-Module -Name AzSK -MinimumVersion 3.6.1

Once that is done, you can use Invoke-Pester and pass in the TemplatePath and Severity parameters to the test script:

Invoke-Pester -Script @{ Path = 'd:\Invoke-AzSKARMTemplateSecurityStatusPesterTest.ps1'; Parameters = @{ TemplatePath = 'D:\101-webapp-basic-windows\azuredeploy.json' }}

This will execute the Pester tests in the file above on the specified ARM template. The tests will fail when there are any best practice violations with the specified Severity or above. If you didn’t pass in a Severity, then it will default to failing on Medium and High.

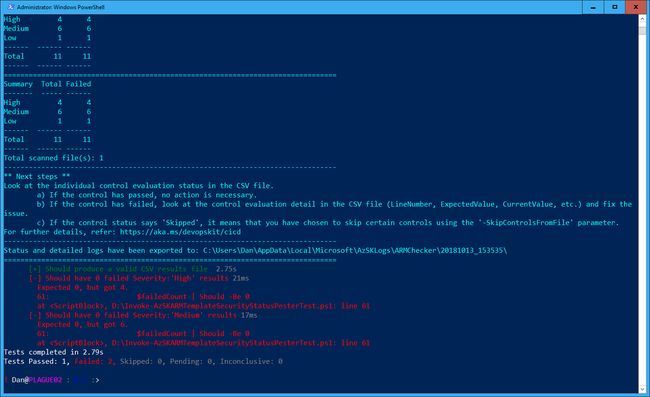

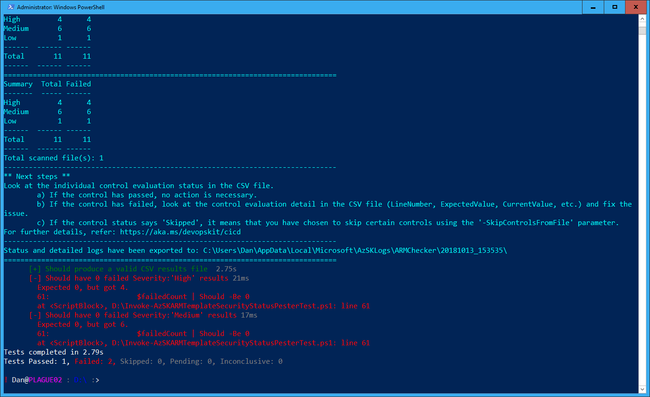

ss_azsk_invokepester

If you use the OutputFile and OutputFormat parameters, Pester can output an NUnit format file that most Continuous Integration tools will happily accept and use to display the output of the tests.

If you installed the script from the PowerShell Gallery, you can also run the tests like this:

AzSKARMTemplateSecurityStatus.Test -TemplatePath D:\101-webapp-basic-windows\azuredeploy.json

Finally, if you’re using Azure DevOps, you can also get this function as part of the Secure DevOps Kit (AzSK) CICD Extensions for Azure in the Azure DevOps Marketplace.

Whichever way you choose to consume AzSK, it is a great module and well worth including in your CI/CD pipelines to ensure your ARM templates meet best practices.
